Deployment Baffle;
Micro-miniature Size;
Low power consumption:0.8W;

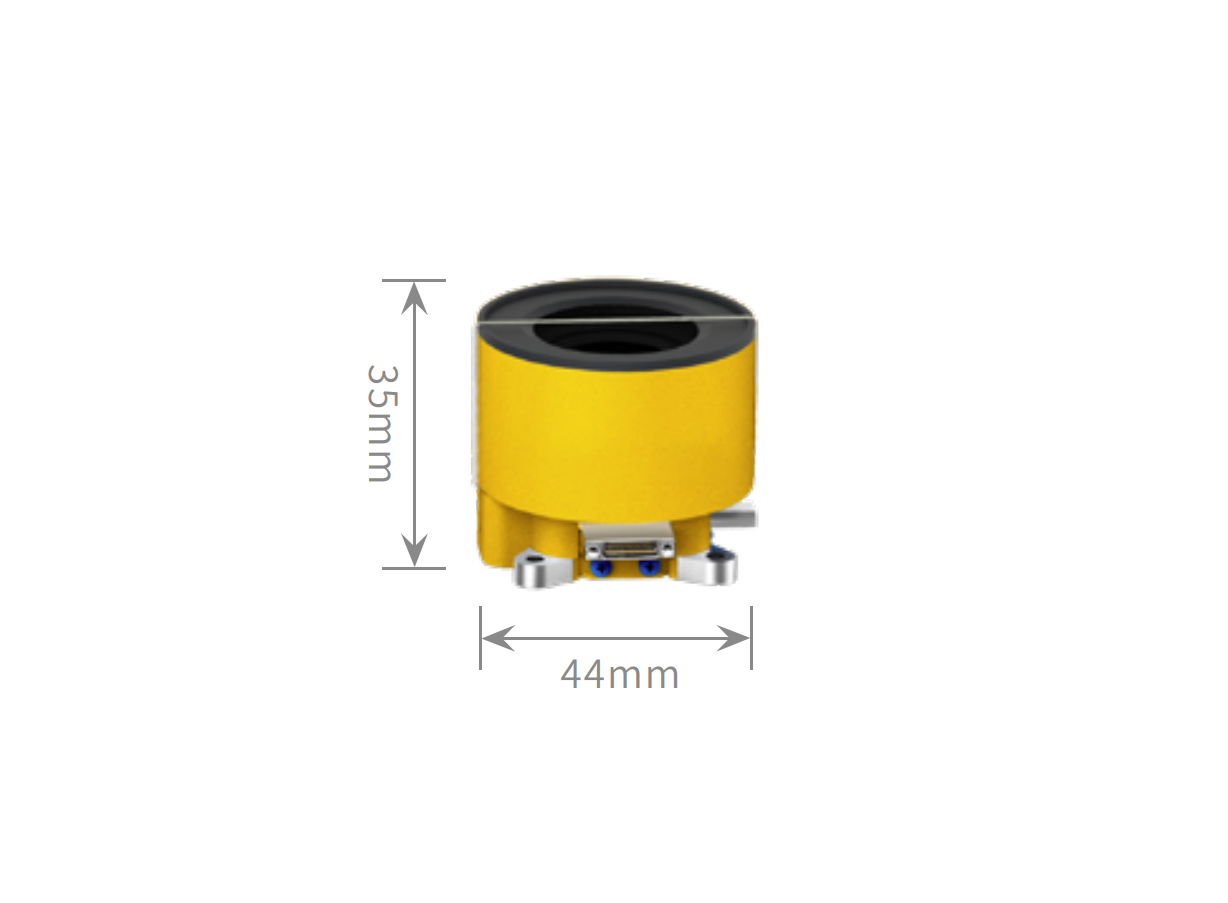

The total installation length of the star tracker is 44×40×35mm³;
| Dimensions | Sensor+Baffle | Baffle Folded:44×40×35（mm³） |
| Baffle Deployed:44×40×75（mm³） | ||
| Mass | Sensor+Baffle | 60g |
| Optical Design | Lens | refracitive |
| Environmental | Operating Relative Humidity Range | ≤60% |
| Start Temperature | -30~40（℃） | |
| Working Temperature | -30~40（℃） | |
| Radiation Resistance | 30 Krad [Si] | |
| Performance | Field of View | 14°×15.8°[effective] |
| Attitude Accuracy(pointing/roll) | ＜5″[3σ] | |
| ＜50″[3σ] | ||
| Update Rate | 10 Hz | |
| Dynamic performance | 2°/s | |
| Sensitivity | 5.8Mv,Go.Ref star | |
| Exclusive Angle | Sun: ＜ 35° | |
| Earth: ＜ 30° | ||
| Data Interface | RS422 | |
| Power Consumption | 0.8W | |
| Input Voltage | 5V | |
| Life Time | 5years | |
