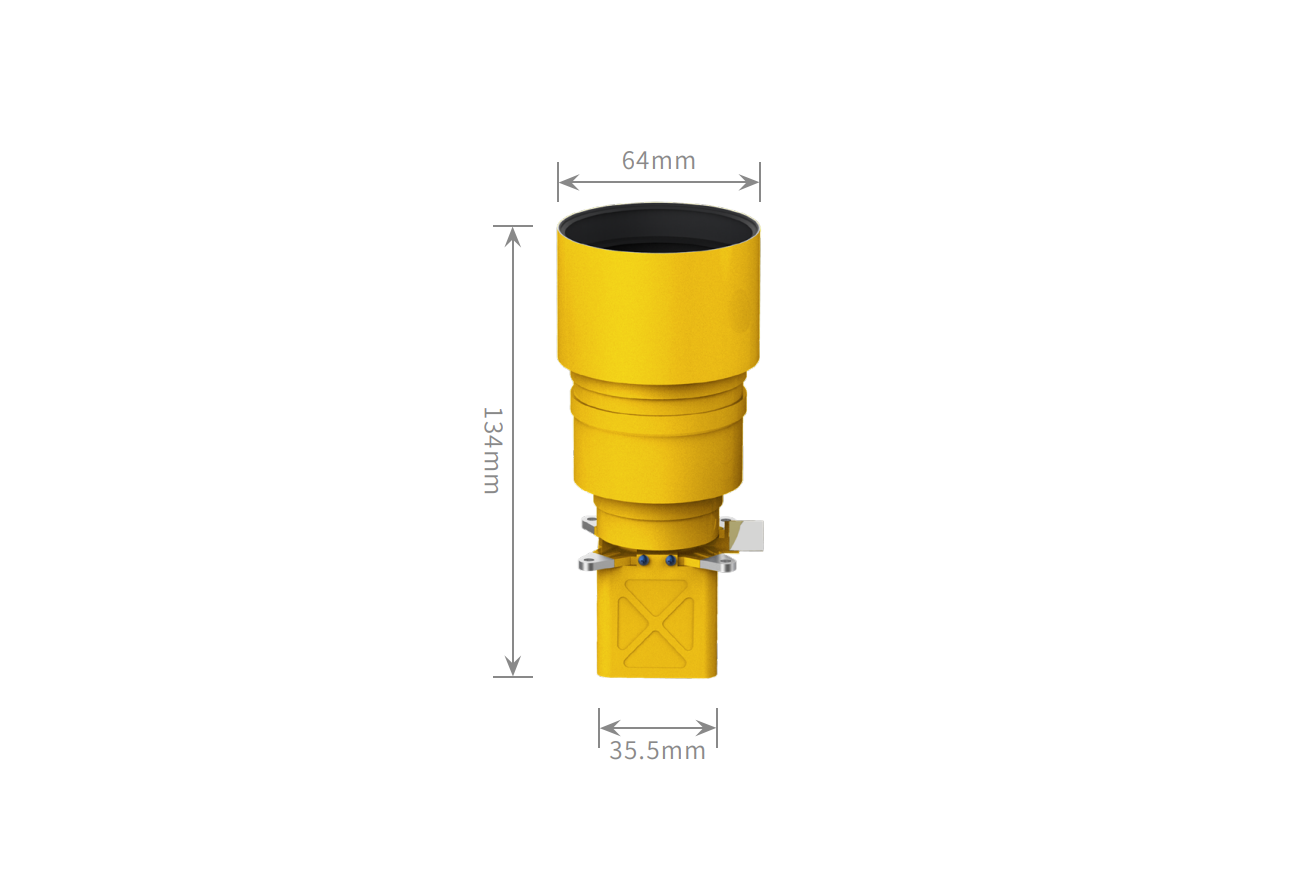

| Dimensions | Sensor+Baffle | 35.5×35.5×134（mm³） |
| Mass | Sensor+Baffle | 130g |
| Optical Design | Lens | refracitive |
| Environmental | Vibration (FM) | sine 13g, random 12 grms |
| Vibration (Qualification) | sine 16g, random 18 grms | |
| Working Temperature | -40~40（℃） | |
| Radiation Resistance | 50 Krad [Si] | |
| Performance | Field of View | 15°×18°[effective] |
| Attitude Accuracy(pointing/rolling) | ﹤3″[3σ] | |
| ﹤30″[3σ] | ||
| Update Rate | 10 Hz | |
| Dynamic performance | 3°/s | |
| Sensitivity | 5.8Mv,Go.Ref star | |
| Exclusive Angle | Sun: ﹤ 35° | |
| Earth: ﹤ 25° | ||
| Data Interface | RS422/CAN | |
| Power Consumption | 1W | |
| Input Voltage | 5V | |
| Life Time | 5years | |
