NST10-G1 Star tracker is a fully autonomous Nano Star Tracker for high precision attitude determination. With high dynamic performance: 10°/s, NST10-G1 is designed for the ultra-high dynamic requirements of satellites.

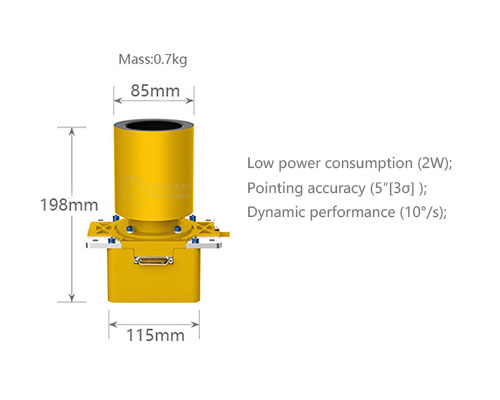

| Dimensions | Sensor+Baffle | 115×85×198(mm³) |
| Mass | Sensor+Baffle | 700g |
| Optical Design | Lens | refracitive |
| Environmental | Vibration (FM) | sine 13g, random 12 grms |
| Vibration (Qualification) | sine 16g, random 18 grms | |
| Working Temperature | -30~50（℃） | |
| Radiation Resistance | 50 Krad [Si] | |
| Performance | Field of View | 15°×15°[effective] |
| Attitude Accuracy(pointing/rolling) | ＜5″[3σ] | |
| ＜50″[3σ] | ||
| Update Rate | 20 Hz | |
| Dynamic performance | 10°/s | |
| Sensitivity | 5.8Mv,Go.Ref star | |
| Exclusive Angle | Sun: ＜ 35° | |
| Earth: ＜ 30° | ||
| Data Interface | RS422/CAN | |
| Power Consumption | 2W | |
| Input Voltage | 5V | |
| Life Time | 5years | |
